SMPP Lua Service

Introduction

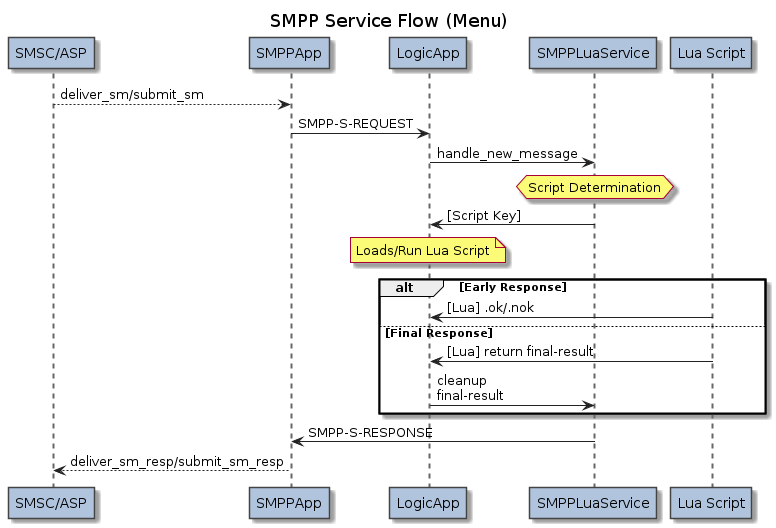

The SMPPLuaService is a service for initiating Lua scripts running within the LogicApp.

The SMPPLuaService receives an SMPP-S-REQUEST message message from an instance of the SMPPApp which is configured to receive SMPP requests from an external client.

The SMPPLuaService coordinates the loading of a Lua script. The script logic will perform any processing, including access of any appropriate database, or external third-party components e.g. via REST, SOAP, or any other protocol supported by the n2svcd framework.

The SMPPLuaService will finally send an SMPP-S-RESPONSE message message back to the originating SMPPApp which will convey this as an SMPP protocol response back to the originating client.

Configuring SMPPLuaService

The SMPPLuaService is configured within a LogicApp instance.

    <?xml version="1.0" encoding="utf-8"?>
    <n2svcd>
      ...
      <applications>
        ...
        <application name="Logic" module="LogicApp">
          <include>
            <lib>../apps/logic/lib</lib>
          </include>
          <parameters>
            ...
          </parameters>
          <config>
            <services>
              <service module="SMPPApp::SMPPLuaService" libs="../apps/smpp/lib" script_dir="/var/lib/n2svcd/logic/smpp">
                <triggers>
                  <trigger pdu="deliver" source="641234567" destination="123" script_key="123"/>
                  <trigger pdu="submit" source_prefix="64" destination_prefix="123" script_key="123"/>
                </triggers>
              </service>
            </services>
            <agents>
              ...
            </agents>
          </config>
        </application>
        ...
      </application>
      ...
    </n2svcd>

In addition to the Common LogicApp Service Configuration, note the following specific attribute notes, and service-specific attributes.

Under normal installation, the following service attributes apply:

Parameter Name Type XML Type Description
module String Attribute [Required] The module name containing the Lua Service code: SMPPApp::SMPPLuaService
libs String Element Location of the module for SMPPLuaService.
(Default: ../apps/smpp/lib)
script_dir String Attribute [Required] The directory containing scripts used by this service.
.triggers Array Element Array of trigger elements specifying Lua scripts to run for SMPP Inbound Transactions.
.trigger Object Element Provisions a Lua script to run for an SMPP Inbound Transaction for a destination/source party.

Script Trigger Rules

Each SMPP trigger rule defines the name of a script which is ready to handle an SMPP Inbound Transaction.

Note that destination and source addresses may contain hex digits A-F, and the matching is for destination_prefix and source_prefix is case-insensitive.

Each trigger Object in the config.triggers Array is configured as follows.

Parameter Name Type XML Type Description
destination String Attribute This trigger only applies for SMPP messages to this exact destination party.
(Default = Trigger applies to all SMPP messages).
destination_prefix String Attribute This trigger applies for only SMPP messages to destination parties starting with this prefix.
(Default = Trigger applies to all SMPP messages).
source String Attribute This trigger applies for only SMPP messages from this exact source party.
(Default = Trigger applies to all SMPP messages).
source_prefix String Attribute This trigger applies for only SMPP messages from source parties starting with this prefix.
(Default = Trigger applies to all SMPP messages).
script_key String Attribute The name for the Lua script to load (excluding the ".lua" suffix). The script should reside in the directory configured for the LogicApp's lua_script_dir, or in the specified subdirectory if script_subdir is configured for this service library.

Script Selection (SMPP Transaction Request)

The Lua Script selection to execute for an SMPP message takes into consideration the source and destination addresses.

The destination address for matching is the SMPP parameter destination_addr.

The source address for matching is the SMPP parameter source_addr.

The SMPPLuaService will iterate the configured trigger entries in the sequence given and use the first trigger that matches the parameters of the received message.

Refer to the LogicApp configuration for more information on directories, library paths, and script caching parameters.

Script Global Variables

Scripts run with this service have access to the Common LUA Service Global Variables.

There are no service-specific global variables.

Script Entry Parameters (SMPP Request)

The Lua script must be a Lua chunk which returns an n2svcd.handler, such as the following:

local n2svcd = require "n2.n2svcd"
local smpp_service = require "n2.n2svcd.smpp_service"

local handler = function (smpp)
    if (smpp.fields.short_message_text == 'Valid') then
        return smpp_service.ESME_OK

    else
        smpp_service.nok (smpp_service.ESME_RUNKNOWNERR)

        n2svcd.write_edr ('DECLINED', { BAD_CONTENT = smpp.fields.short_message_text })

        return smpp_service.ESME_RUNKNOWNERR
    end
end

return n2svcd.handler (handler)

The handler will be executed with a single smpp entry parameter which takes the same format as the smpp object of the received SMPP-S-REQUEST message.

Script Return Parameters (SMPP Response)

The Lua script is responsible for determing the contents of the response SMPP deliver_sm_resp or submit_sm_resp (as appropriate to the received SMPP message) that will be sent back to the message source.

There are three mechanisms for determining the final success/reject result of message handling.

  1. Return nil to indicate success result without message ID returned.
  2. Return a simple integer command status value, e.g. one of the ESME_ constants defined in the service module.
  3. Return a table containing command_status and optional fields sub-table with message_id.
  4. Use either the nok or ok method expressly, in which case the final handler return value is ignored.

To summarise these in slightly more detail.

(1) Returning nil at the end of the script indicates that the sm_deliver_resp or sm_submit_resp processing response will contain command status (0 = ESME_OK) and the message ID is not present.

Example (returning a successful response using nil):

local n2svcd = require "n2.n2svcd"

local handler = function (smpp)
    return nil
end

return n2svcd.handler (handler)

(2) Returning a Lua Number result at the end of the script indicates that the sm_deliver_resp or sm_submit_resp processing response will contain command status with the indicated value, and the message ID is not present.

Example (returning an error response using Lua Number return):

local n2svcd = require "n2.n2svcd"
local smpp_service = require "n2.n2svcd.smpp_service"

local handler = function (smpp)
    return smpp_service.ESME_RINVDFTMSGID
end

return n2svcd.handler (handler)

(3) Returning Lua Table result at the end of the script, the table must be a response object which has the structure of the smpp object of the SMPP-S-RESPONSE message.

Example (returning a success with message ID using Lua Table return):

local n2svcd = require "n2.n2svcd"

local handler = function (smpp)
    return { command_status = 0, message_id = 'ID7777' }
end

return n2svcd.handler (handler)

(4) Refer to the per-method documentation below.

The SMPPLuaService API

The SMPP Service API can be loaded as follows.

    local smpp_service = require "n2.n2svcd.smpp_service"

It is not necessary to load the SMPP Service API if you are only using the simple response mechanism described above. It is only required if you wish to use any of the extended features described below, or any of the predefined error constants.

.response [Synchronous]

When a Lua script needs to perform extended processing, it may wish to send an early SMPP response before the script completes. This can be done with the response method on the SMPP Service API.

This method will request the handling SMPPApp to send the appropriate submit_sm_resp or deliver_sm_resp message back to the originating client.

The response method takes a single response parameter.

Parameter Type Description
response Table A Lua Table with the same structure described under "Script Return Parameters", i.e. which has the structure of the `smpp` object of the [SMPP-S-RESPONSE message](../../../../n2svcd/technical_guide/messages/smpp_s_messages.html#smpp-s-request).

Note that the Message ID field is only relevant for submit_sm_resp.

After the response method returns, the SMPP response has been handled, and the return value of the handler method is now ignored.

The response method returns nil.

[Fragment] Example Early Response success specifying message ID:

    ...
    smpp_service.response ({ command_status = 0, message_id = assigned_id })

    [post-processing logic after SMPP transaction is finished]
    ...

[Fragment] Example Early Response failure:

    ...
    smpp_service.response ({ command_status = 0x44 })

    [post-processing logic after SMPP transaction is finished]
    ...

.ok [Synchronous]

The ok method is a short-cut for the early sending of a successful response, i.e. one with command_status = ESME_OK = 0.

The ok method takes a single optional parameter.

Parameter Type Description
message_id String Optional message ID field to include in the response, for submit_sm handling only.

The ok method returns nil.

[Fragment] Example Early Response success specifying message ID:

    ...
    smpp_service.ok (assigned_id)

    [post-processing logic after SMPP transaction is finished]
    ...

.nok [Synchronous]

The nok method is a short-cut for the early sending of an unsuccessful response, i.e. one with command_status not equal to ESME_OK = 0.

The nok method takes a single mandatory parameter.

Parameter Type Description
command_status Integer Mandatory non-zero command status.

The nok method returns nil.

[Fragment] Example Early Response failure:

    ...
    smpp_service.nok (0x44)

    [post-processing logic after SMPP transaction is finished]
    ...

Constants

The following SMPP constants are defined on the returned smpp_service object.

SMPP Command Status Constants

The following constants are the pre-defined, non-reserved SMPP 3.4 constant command status values.

-- SMPP Command Status Constants.
smpp_service.ESME_ROK  = 0x00000000               -- No Error
smpp_service.ESME_RINVMSGLEN  = 0x00000001        -- Message Length is invalid
smpp_service.ESME_RINVCMDLEN  = 0x00000002        -- Command Length is invalid
smpp_service.ESME_RINVCMDID  = 0x00000003         -- Invalid Command ID
smpp_service.ESME_RINVBNDSTS  = 0x00000004        -- Incorrect BIND Status for given command
smpp_service.ESME_RALYBND  = 0x00000005           -- ESME Already in Bound State
smpp_service.ESME_RINVPRTFLG  = 0x00000006        -- Invalid Priority Flag
smpp_service.ESME_RINVREGDLVFLG  = 0x00000007     -- Invalid Registered Delivery Flag
smpp_service.ESME_RSYSERR  = 0x00000008           -- System Error
smpp_service.ESME_RINVSRCADR  = 0x0000000A        -- Invalid Source Address
smpp_service.ESME_RINVDSTADR  = 0x0000000B        -- Invalid Dest Addr
smpp_service.ESME_RINVMSGID  = 0x0000000C         -- Message ID is invalid
smpp_service.ESME_RBINDFAIL  = 0x0000000D         -- Bind Failed
smpp_service.ESME_RINVPASWD  = 0x0000000E         -- Invalid Password
smpp_service.ESME_RINVSYSID  = 0x0000000F         -- Invalid System ID
smpp_service.ESME_RCANCELFAIL  = 0x00000011       -- Cancel SM Failed
smpp_service.ESME_RREPLACEFAIL  = 0x00000013      -- Replace SM Failed
smpp_service.ESME_RMSGQFUL  = 0x00000014          -- Message Queue Full
smpp_service.ESME_RINVSERTYP  = 0x00000015        -- Invalid Service Type
smpp_service.ESME_RINVNUMDESTS  = 0x00000033      -- Invalid number of destinations
smpp_service.ESME_RINVDLNAME  = 0x00000034        -- Invalid Distribution List name
smpp_service.ESME_RINVDESTFLAG  = 0x00000040      -- Destination flag is invalid (submit_multi)
smpp_service.ESME_RINVSUBREP  = 0x00000042        -- Invalid 'submit with replace' request (i.e. submit_sm with replace_if_present_flag set)
smpp_service.ESME_RINVESMCLASS  = 0x00000043      -- Invalid esm_class field data
smpp_service.ESME_RCNTSUBDL  = 0x00000044         -- Cannot Submit to Distribution List
smpp_service.ESME_RSUBMITFAIL  = 0x00000045       -- submit_sm or submit_multi failed
smpp_service.ESME_RINVSRCTON  = 0x00000048        -- Invalid Source address TON
smpp_service.ESME_RINVSRCNPI  = 0x00000049        -- Invalid Source address NPI
smpp_service.ESME_RINVDSTTON  = 0x00000050        -- Invalid Destination address TON
smpp_service.ESME_RINVDSTNPI  = 0x00000051        -- Invalid Destination address NPI
smpp_service.ESME_RINVSYSTYP  = 0x00000053        -- Invalid system_type field
smpp_service.ESME_RINVREPFLAG  = 0x00000054       -- Invalid replace_if_present flag
smpp_service.ESME_RINVNUMMSGS  = 0x00000055       -- Invalid number of messages
smpp_service.ESME_RTHROTTLED  = 0x00000058        -- Throttling error (ESME has exceeded allowed message limits)
smpp_service.ESME_RINVSCHED  = 0x00000061         -- Invalid Scheduled Delivery Time
smpp_service.ESME_RINVEXPIRY  = 0x00000062        -- Invalid message (Expiry time)
smpp_service.ESME_RINVDFTMSGID  = 0x00000063      -- Predefined Message Invalid or Not Found
smpp_service.ESME_RX_T_APPN  = 0x00000064         -- ESME Receiver Temporary App Error Code
smpp_service.ESME_RX_P_APPN  = 0x00000065         -- ESME Receiver Permanent App Error Code
smpp_service.ESME_RX_R_APPN  = 0x00000066         -- ESME Receiver Reject Message Error Code
smpp_service.ESME_RQUERYFAIL  = 0x00000067        -- query_sm request failed
smpp_service.ESME_RINVOPTPARSTREAM  = 0x000000C0, -- Error in the optional part of the PDU Body.
smpp_service.ESME_ROPTPARNOTALLWD  = 0x000000C1   -- Optional Parameter not allowed
smpp_service.ESME_RINVPARLEN  = 0x000000C2        -- Invalid Parameter Length.
smpp_service.ESME_RMISSINGOPTPARAM  = 0x000000C3, -- Expected Optional Parameter missing
smpp_service.ESME_RINVOPTPARAMVAL  = 0x000000C4   -- Invalid Optional Parameter Value
smpp_service.ESME_RDELIVERYFAILURE  = 0x000000FE, -- Delivery Failure (data_sm_resp)
smpp_service.ESME_RUNKNOWNERR  = 0x000000FF       -- Unknown Error
